Engine Check

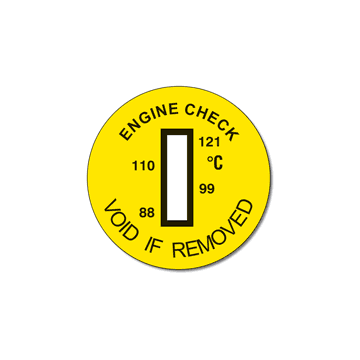

The Engine Check is a circular yellow label with a vertical column of four temperature sensitive cells that react at 88, 99, 110 and 121ºC. The cells change from white to black as each temperature is achieved. The label is adhesive backed and is typically used on remanufactured engines to show when normal operating temperatures have been exceeded through operational abuse, and provides evidence for warranty claims. The label also has text stating "Void If Removed" to discourage tampering..

Engine Check Warranty Temperature Label 88°C to 121°C $ 24.17

Engine Check Warranty Temperature Label 88°C to 121°C

$ 24.17

Options

Specification

Scale: °C and ºF

Range: 88ºC to 121ºC / 190ºF to 250ºF

Type: Engine Check

Reaction Time: Max 4 sec.

Accuracy:
100ºC - 154ºC +/- 1.5ºC

Accuracy & Conformity: Click Here

Education: How do they work

Resources

Safety Data Sheet

Product's data sheet providing additional technical information.

Download the PDF

Product Information Sheet

Product's interpretation guide or additional information

Download the PDF

Verification And Measurement

How to Irreversible Temperature labels Work?

Reacts to increasing Temperature

This can be used to provide a permanent record of temperature abuse of refrigerated or frozen items, as well as showing temperature achievement for thermal processes.

Overview The Engine Check Warranty temperature indicator label is widely used in the automotive sector as part of warranty procedures for new & remanufactured engine blocks. It reacts with a permanent, one-way colour...
